Advanced Log Filtering

Querying the logs

Understanding field references#

The log tables are queried with a subset of BigQuery SQL syntax. They all have three columns: event_message, timestamp, and metadata.

The metadata column is an array of JSON objects that stores important details about each recorded event. For example, in the Postgres table, the metadata.parsed.error_severity field indicates the error level of an event. To work with its values, you need to unnest them using a cross join.

This approach is commonly used with JSON and array columns, so it might look a bit unfamiliar if you're not used to working with these data types.

1
2
3
4
5
6
7
8
9
10
select  event_message,  parsed.error_severity,  parsed.user_namefrom  postgres_logs  -- extract first layer  cross join unnest(postgres_logs.metadata) as metadata  -- extract second layer  cross join unnest(metadata.parsed) as parsed;

Expanding results#

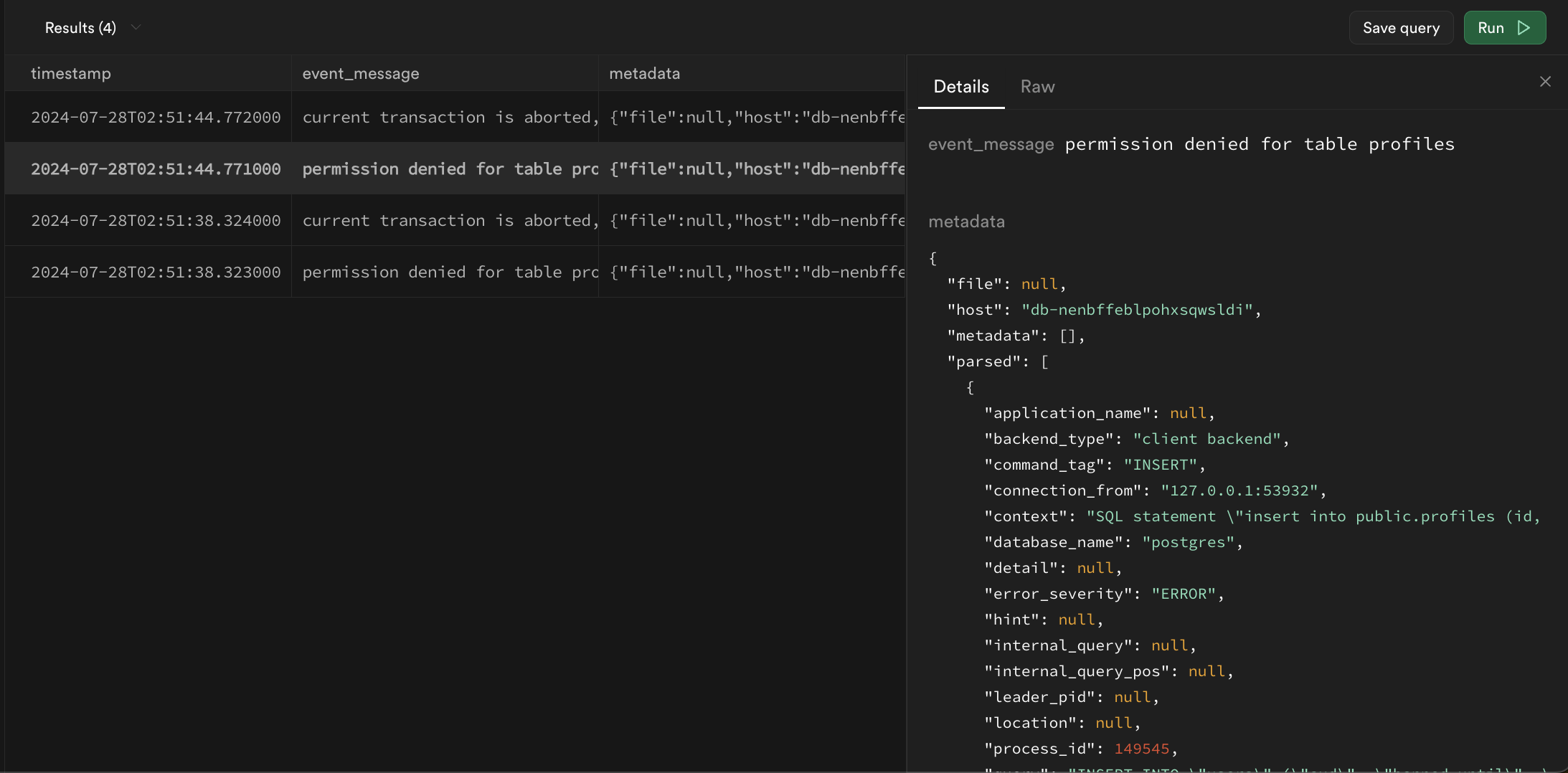

Logs returned by queries may be difficult to read in table format. A row can be double-clicked to expand the results into more readable JSON:

Filtering with regular expressions#

The Logs use BigQuery Style regular expressions with the regexp_contains function. In its most basic form, it will check if a string is present in a specified column.

1
2
3
4
5
6
select  cast(timestamp as datetime) as timestamp,  event_message,  metadatafrom postgres_logswhere regexp_contains(event_message, 'is present');

There are multiple operators that you should consider using:

Find messages that start with a phrase#

^ only looks for values at the start of a string

1
2
-- find only messages that start with connectionregexp_contains(event_message, '^connection')

Find messages that end with a phrase:#

$ only looks for values at the end of the string

1
2
-- find only messages that ends with port=12345regexp_contains(event_message, '$port=12345')

Ignore case sensitivity:#

(?i) ignores capitalization for all proceeding characters

1
2
-- find all event_messages with the word "connection"regexp_contains(event_message, '(?i)COnnecTion')

Wildcards:#

. can represent any string of characters

1
2
-- find event_messages like "hello<anything>world"regexp_contains(event_message, 'hello.world')

Alphanumeric ranges:#

[1-9a-zA-Z] finds any strings with only numbers and letters

1
2
-- find event_messages that contain a number between 1 and 5 (inclusive)regexp_contains(event_message, '[1-5]')

Repeated values:#

x* zero or more x x+ one or more x x? zero or one x x{4,} four or more x x{3} exactly 3 x

1
2
-- find event_messages that contains any sequence of 3 digitsregexp_contains(event_message, '[0-9]{3}')

Escaping reserved characters:#

\. interpreted as period . instead of as a wildcard

1
2
-- escapes .regexp_contains(event_message, 'hello world\.')

or statements:#

x|y any string with x or y present

1
2
-- find event_messages that have the word 'started' followed by either the word "host" or "authenticated"regexp_contains(event_message, 'started host|authenticated')

and/or/not statements in SQL:#

and, or, and not are all native terms in SQL and can be used in conjunction with regular expressions to filter results

1
2
3
4
5
6
7
8
select  cast(timestamp as datetime) as timestamp,  event_message,  metadatafrom postgres_logswhere  (regexp_contains(event_message, 'connection') and regexp_contains(event_message, 'host'))  or not regexp_contains(event_message, 'received');

Filtering and unnesting example#

Filter for Postgres

1
2
3
4
5
6
7
8
9
10
11
12
select  cast(postgres_logs.timestamp as datetime) as timestamp,  parsed.error_severity,  parsed.user_name,  event_messagefrom  postgres_logs  cross join unnest(metadata) as metadata  cross join unnest(metadata.parsed) as parsedwhere regexp_contains(parsed.error_severity, 'ERROR|FATAL|PANIC')order by timestamp desclimit 100;

Limitations#

Log tables cannot be joined together#

Each product table operates independently without the ability to join with other log tables. This may change in the future.

The with keyword and subqueries are not supported#

The parser does not yet support with and subquery statements.

The ilike and similar to keywords are not supported#

Although like and other comparison operators can be used, ilike and similar to are incompatible with BigQuery's variant of SQL. regexp_contains can be used as an alternative.

The wildcard operator * to select columns is not supported#

The log parser is not able to parse the * operator for column selection. Instead, you can access all fields from the metadata column:

1
2
3
4
5
6
7
8
select  cast(postgres_logs.timestamp as datetime) as timestamp,  event_message,  metadatafrom  <log_table_name>order by timestamp desclimit 100;
