Inworld Language Tutor

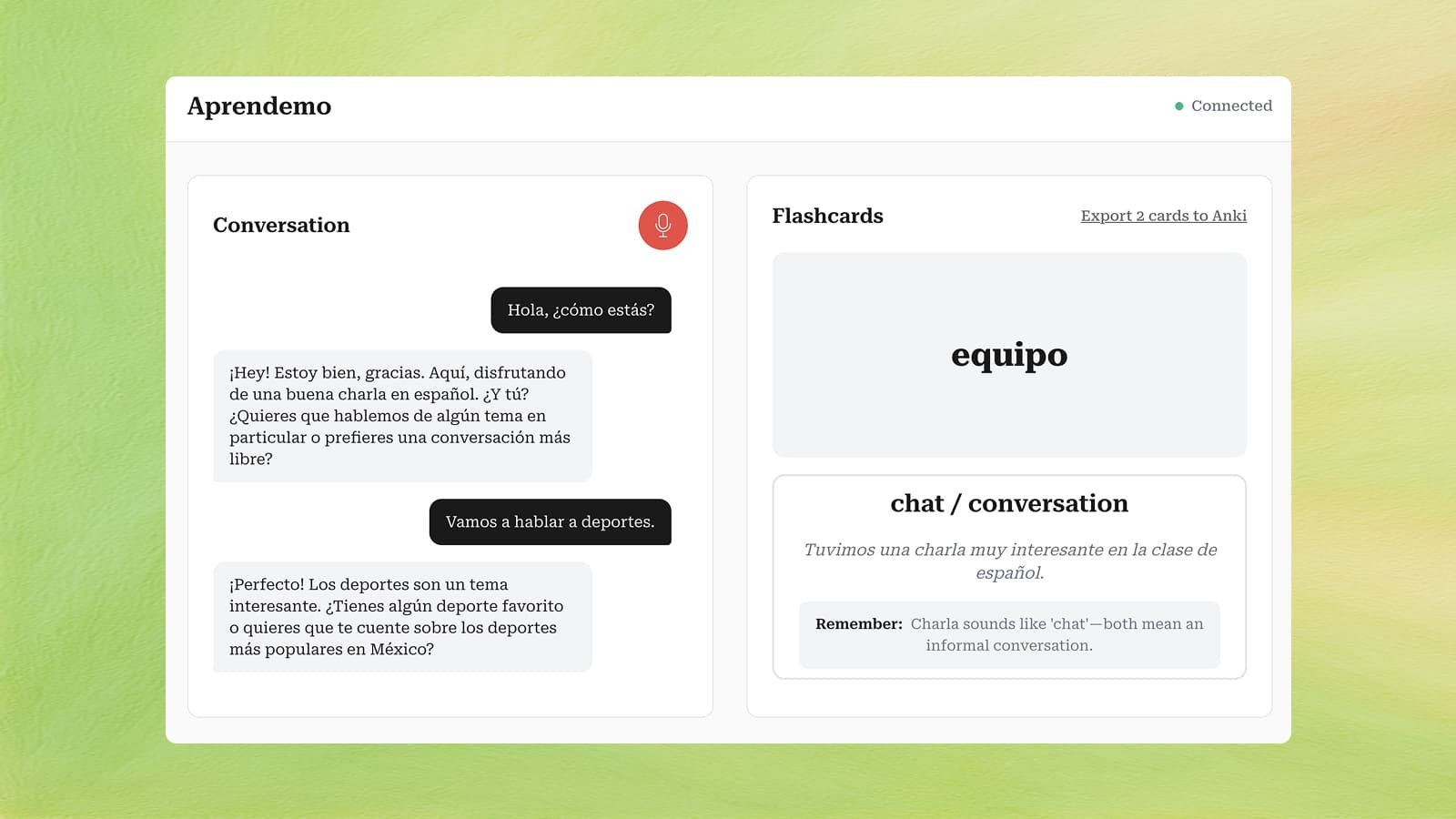

A conversational language learning app powered by Inworld AI. Practice speaking with an AI tutor, get realtime feedback on your responses, and build vocabulary with auto-generated flashcards. This template can be used to add realtime conversational AI functionality to any application.

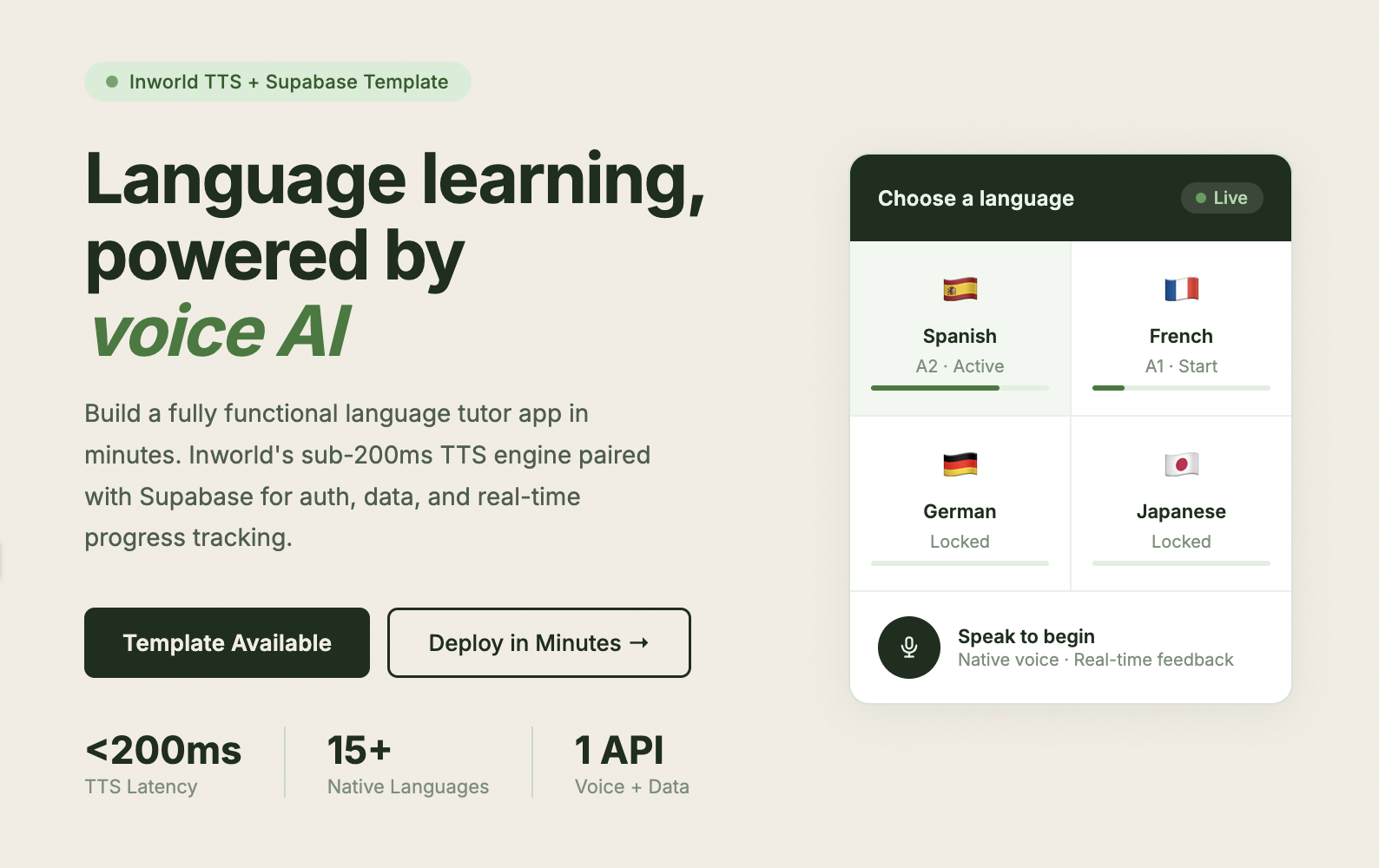

App

Prerequisites

Node.js (v20 or higher)
npm
An Inworld AI account and API key
An AssemblyAI account and API key (for speech-to-text)

Get Started

Step 1: Clone the Repository


_10git clone https://github.com/inworld-ai/language-learning-node
_10cd language-learning-node

Step 2: Install Dependencies


_10npm install

This installs dependencies for the root, backend, and frontend automatically.

Step 3: Configure Environment Variables

Create a backend/.env file:


_10INWORLD_API_KEY=your_inworld_base64_key
_10ASSEMBLY_AI_API_KEY=your_assemblyai_key

Service	Get Key From	Purpose
Inworld	platform.inworld.ai	AI conversations (Base64 API key)
AssemblyAI	assemblyai.com	Speech-to-text

Step 4: Run the Application

For development (with auto-reload on file changes):


_10npm run dev

This starts both the backend (port 3000) and frontend dev server (port 5173) concurrently.

Open http://localhost:5173

For production:


_10npm run build
_10npm start

Open http://localhost:3000

Step 5 (Optional): Set Up Supabase for Auth & Memory

Without Supabase, the app works in anonymous mode using localStorage.

a) Create a Supabase project at supabase.com

b) Push the database schema:


_10npx supabase login
_10npx supabase link --project-ref YOUR_PROJECT_REF
_10npx supabase db push

This creates all tables, indexes, RLS policies, and the match_memories function for semantic search.

Find your project ref in the Supabase dashboard URL: supabase.com/dashboard/project/YOUR_PROJECT_REF

c) Add Supabase variables to backend/.env:


_10SUPABASE_URL=https://YOUR_PROJECT.supabase.co
_10SUPABASE_SECRET_KEY=your_secret_key

d) Create frontend/.env.local:


_10VITE_SUPABASE_URL=https://YOUR_PROJECT.supabase.co
_10VITE_SUPABASE_PUBLISHABLE_KEY=your_anon_key

Find these in: Supabase Dashboard > Settings > API

Repo Structure


_30language-learning-node/
_30├── backend/
_30│   ├── src/
_30│   │   ├── __tests__/        # Backend unit tests
_30│   │   ├── config/           # Language, LLM & server configuration
_30│   │   ├── graphs/           # Inworld Runtime conversation graphs
_30│   │   │   ├── configs/      # Graph JSON configurations
_30│   │   │   └── nodes/        # Custom graph nodes
_30│   │   ├── helpers/          # Audio utils, connection management
_30│   │   ├── prompts/          # Nunjucks prompt templates
_30│   │   ├── services/         # Server components (WS handler, API routes)
_30│   │   ├── types/            # TypeScript types
_30│   │   ├── utils/            # Logger
_30│   │   └── server.ts         # Entry point
_30│   └── vitest.config.ts      # Backend test config
_30├── frontend/
_30│   ├── src/
_30│   │   ├── __tests__/        # Frontend unit tests
_30│   │   ├── components/       # React components
_30│   │   ├── config/           # Language configuration
_30│   │   ├── context/          # App state & auth
_30│   │   ├── hooks/            # Custom React hooks
_30│   │   ├── services/         # WebSocket client, audio, storage
_30│   │   ├── styles/           # CSS
_30│   │   └── types/            # TypeScript types
_30│   └── vitest.config.ts      # Frontend test config
_30├── supabase/
_30│   └── migrations/           # Database schema
_30├── render.yaml               # Render deployment config
_30└── package.json              # Monorepo scripts

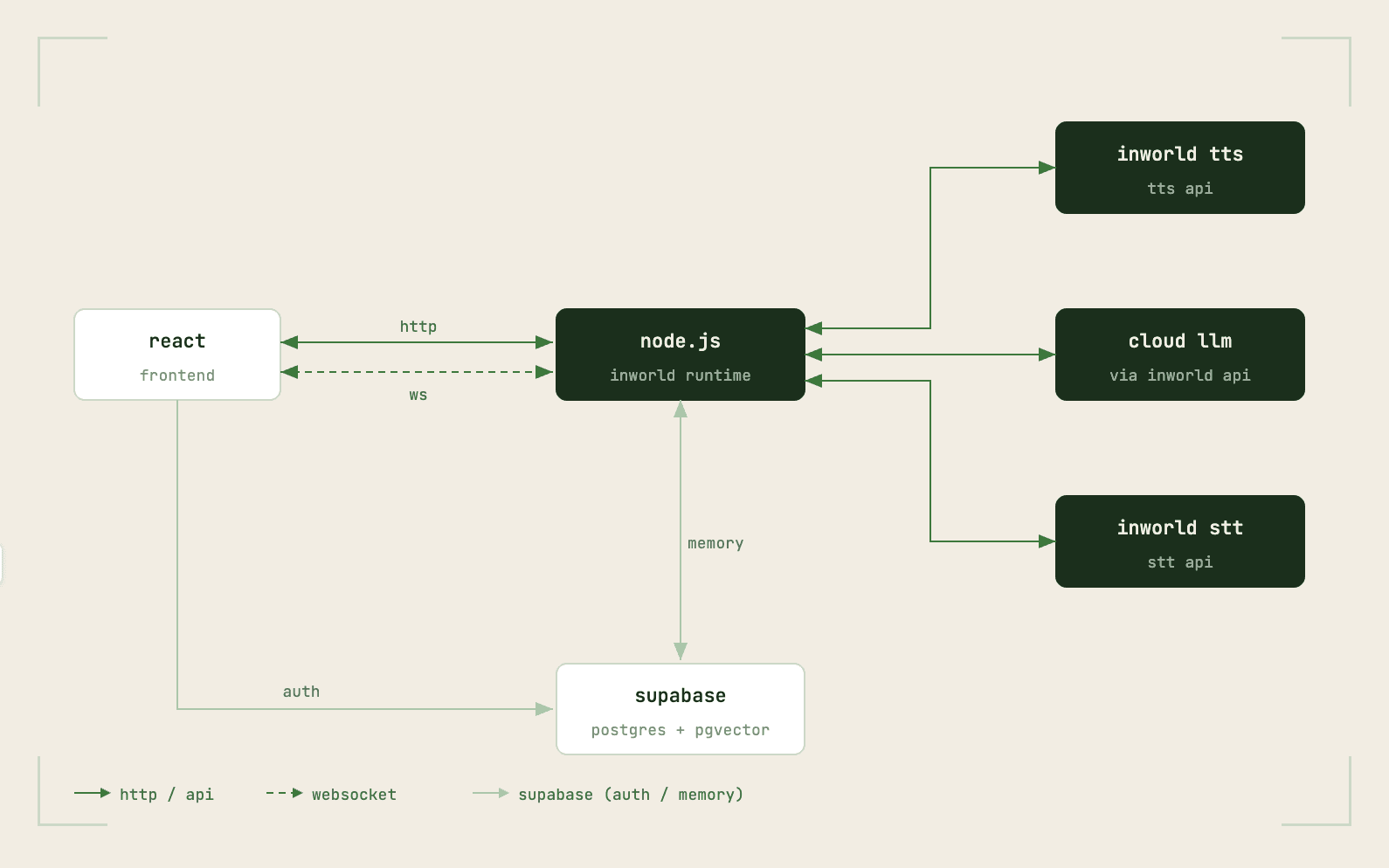

Architecture

The app uses a real-time audio streaming architecture:

Frontend captures microphone audio and streams it via WebSocket
Backend processes audio through an Inworld Runtime graph:
- AssemblyAI handles speech-to-text with voice activity detection
- LLM generates contextual responses in the target language
- TTS converts responses back to audio
Flashcards are auto-generated from conversation vocabulary
Response feedback provides grammar and usage corrections

Memory System

When Supabase is configured, the app stores and retrieves user memories using semantic search:

Automatic memory creation: Every few conversation turns, the system extracts memorable facts
Semantic retrieval: Relevant memories are retrieved using vector similarity search (pgvector)
Personalized responses: The AI uses retrieved memories to personalize conversations

Memory types:

learning_progress: Vocabulary struggles, grammar patterns, learning achievements
personal_context: Interests, goals, preferences shared by the user

Without Supabase, the app works in anonymous mode using localStorage (no memory persistence).

Environment Variables Reference

Variable	Required	Description
`INWORLD_API_KEY`	Yes	Inworld AI Base64 API key
`ASSEMBLY_AI_API_KEY`	Yes	AssemblyAI API key
`PORT`	No	Server port (default: 3000)
`LOG_LEVEL`	No	`trace`, `debug`, `info`, `warn`, `error`, `fatal` (default: info)
`NODE_ENV`	No	Set to `production` for production log format
`ASSEMBLY_AI_EAGERNESS`	No	Turn detection: `low`, `medium`, `high` (default: high)
`SUPABASE_URL`	No	Supabase project URL (enables memory feature)
`SUPABASE_SECRET_KEY`	No	Supabase secret key (for backend memory storage)

Testing


_11# Run all tests (backend + frontend)
_11npm test --prefix backend
_11
_11# Backend tests only
_11npm run test:backend --prefix backend
_11
_11# Frontend tests only
_11npm test --prefix frontend
_11
_11# Watch mode (backend)
_11npm run test:watch --prefix backend

Tests cover critical paths: audio conversion, language configuration, storage persistence, and flashcard deduplication.

Troubleshooting

Bug Reports: GitHub Issues

General Questions: For general inquiries and support, please email us at support@inworld.ai

Contributing

We welcome contributions! Please see CONTRIBUTING.md for guidelines on how to contribute to this project.

License

This project is licensed under the MIT License - see the LICENSE file for details.
