Database

BigQuery destination

Replicate Supabase Postgres tables to BigQuery.

BigQuery is Google's fully managed data warehouse. You can replicate your database tables to BigQuery for analytics and reporting.

Prepare GCP resources#

Before configuring BigQuery as a destination, set up the following in Google Cloud Platform:

  1. Google Cloud Platform (GCP) account: Sign up for GCP if you don't have one

  2. BigQuery dataset: Create a BigQuery dataset in your GCP project

    • Open the BigQuery console in GCP
    • Select your project
    • Click Create Dataset
    • Provide a dataset ID, for example supabase_replication

  3. GCP service account key: Create a service account with appropriate permissions

    • Go to IAM & Admin > Service Accounts
    • Click Create Service Account
    • Grant the "BigQuery Data Editor" role
    • Create and download the JSON key file

Required permissions:

  • bigquery.datasets.get
  • bigquery.tables.create
  • bigquery.tables.get
  • bigquery.tables.getData
  • bigquery.tables.update
  • bigquery.tables.updateData

Configure BigQuery as a destination#

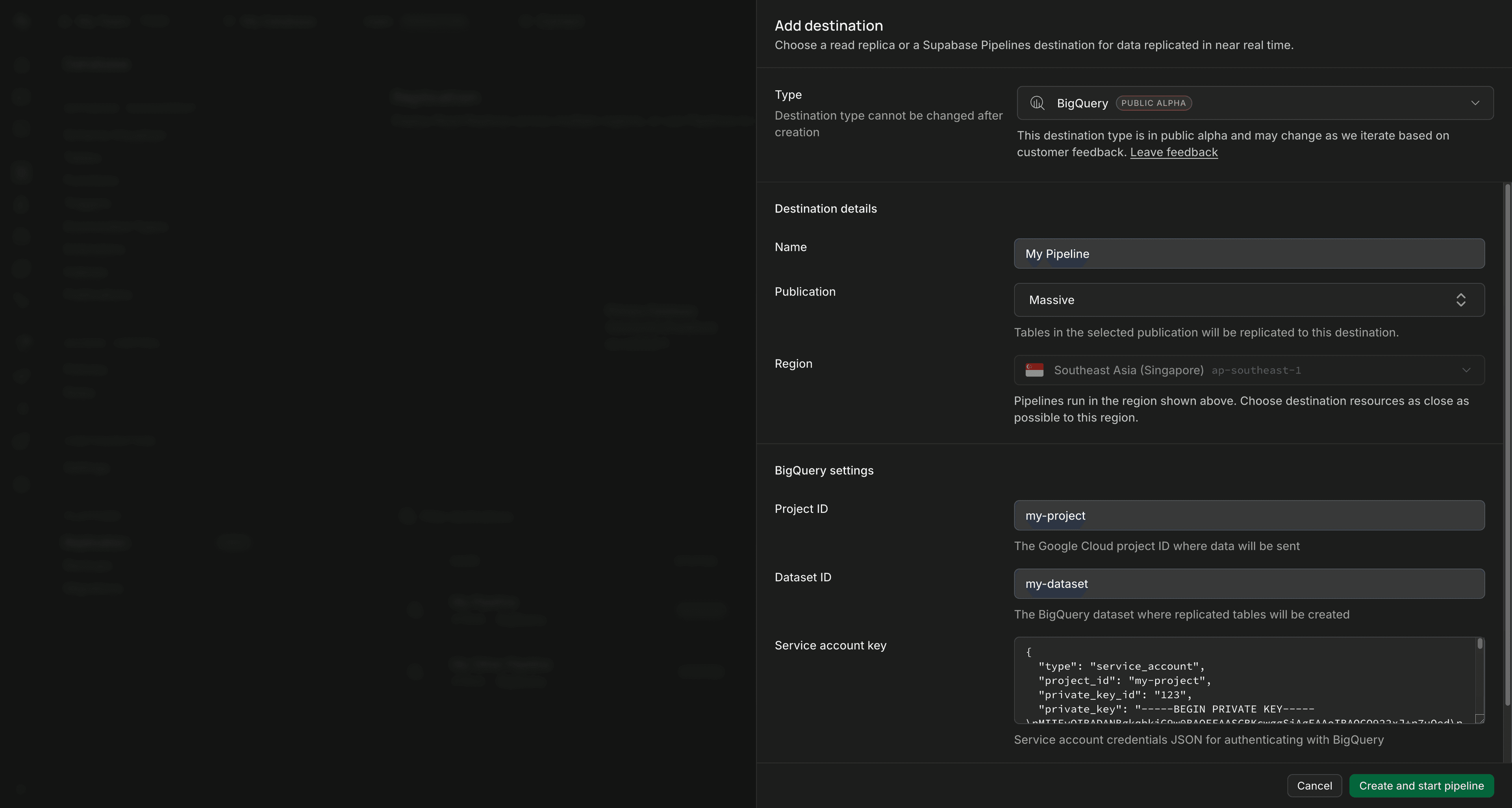

  1. Navigate to the Database > Replication section of the Dashboard

  2. Click Add destination

  3. Configure the general settings:

    • Destination name: A name to identify this destination, for example "BigQuery Warehouse"
    • Publication: The publication to replicate data from
    • Destination type: Select BigQuery

  4. Configure BigQuery-specific settings:

    • Project ID: Your BigQuery project identifier, found in the GCP Console

    • Dataset ID: The name of your BigQuery dataset, without the project ID

    • Service Account Key: Your GCP service account key in JSON format

  5. Optionally expand Advanced settings for BigQuery-specific performance tuning:

    SettingDefaultDescription
    Connection pool size4 connectionsSize of the BigQuery Storage Write API connection pool. More connections allow more parallel writes, but consume more resources.
    Maximum stalenessNo staleness limitMaximum allowed age, in minutes, for BigQuery cached metadata before reading base tables. Lower values improve freshness. Higher values can reduce query cost and latency.

  6. Click Create and start to begin replication

Your replication pipeline now starts copying data from your database to BigQuery.

How it works#

Once configured, replication to BigQuery:

  1. Captures changes from your Postgres database (INSERT, UPDATE, DELETE, TRUNCATE operations)
  2. Optimizes delivery automatically
  3. Creates BigQuery tables automatically to match your Postgres schema
  4. Streams data to BigQuery

Source table requirements#

BigQuery replication requires each source table to have a primary key, and the publication must include the primary-key columns. External replication declares those columns as the BigQuery destination primary key so BigQuery CDC can apply UPSERT and DELETE rows.

BigQuery primary keys are NOT ENFORCED, and BigQuery CDC supports composite primary keys with up to 16 columns. Your source primary key must stay unique and non-null because BigQuery uses it to match CDC rows.

Source tables must also use a BigQuery-compatible Postgres REPLICA IDENTITY setting:

  • DEFAULT with a primary key is supported and works for most tables.
  • FULL is supported and is recommended for tables with large text, jsonb, bytea, or other values that Postgres may store out-of-line using TOAST.
  • USING INDEX, NOTHING, or DEFAULT without a primary key are not supported for BigQuery replication.

For a general explanation of how replica identity affects update and delete events, see How does replica identity affect updates and deletes?.

For updates, Postgres does not always send a complete old row through logical replication. It can also mark unchanged toasted values as unchanged toast instead of resending the value. The replication pipeline can reconstruct a complete update when the old row image contains the missing value, which is reliable with REPLICA IDENTITY FULL. BigQuery CDC upserts require a complete new row, so updates can fail for tables with toasted columns if the pipeline receives only a partial update row.

Check a table's current replica identity:

1
select
2
  n.nspname as schema_name,
3
  c.relname as table_name,
4
  c.relreplident as replica_identity
5
from
6
  pg_class as c
7
  join pg_namespace as n on n.oid = c.relnamespace
8
where n.nspname = 'public' and c.relname = 'your_table';

The replica_identity value is d for default, f for full, i for index, and n for nothing.

Set full replica identity when a table has toasted columns and update replication must be reliable:

1
alter table public.your_table replica identity full;

REPLICA IDENTITY FULL increases WAL volume because Postgres logs the full old row for updates and deletes. Use it on tables where update correctness is more important than the extra replication overhead.

How tables are structured#

Due to BigQuery limitations, replicated tables use a versioned structure:

  • The table you query is a view, for example users
  • The actual data is stored in versioned tables with a _version suffix, for example users_version
  • When a table is truncated in your database, a new version is created and the view automatically points to the latest version

This structure handles table truncations while maintaining query compatibility.

Schema change support#

Schema change support for BigQuery is currently in beta. External replication supports a limited set of schema changes while the feature is developed further.

Supported schema changes:

  • Adding a column
  • Removing a column
  • Renaming a column

Unsupported schema changes:

  • Changing a column's data type
  • Replicating column default values

We plan to expand schema change support over time as the feature evolves.

Limitations#

  • Row size: Limited to 10 MB per row due to BigQuery Storage Write API constraints
  • Primary keys: Source tables must have a primary key, the replicated primary key can contain at most 16 columns, and BigQuery does not enforce key uniqueness
  • Replica identity: Source tables must use primary-key replica identity or REPLICA IDENTITY FULL
  • Table names: Source table names cannot start or end with _ when replicating to BigQuery
  • Schema changes: Limited to the supported schema changes listed above
