Build a User Management App with RedwoodJS
This tutorial demonstrates how to build a basic user management app. The app authenticates and identifies the user, stores their profile information in the database, and allows the user to log in, update their profile details, and upload a profile photo. The app uses:
- Supabase Database - a Postgres database for storing your user data and Row Level Security so data is protected and users can only access their own information.
- Supabase Auth - users log in through magic links sent to their email (without having to set up passwords).
- Supabase Storage - users can upload a profile photo.
If you get stuck while working through this guide, refer to the full example on GitHub.
A Redwood application is split into two parts: a frontend and a backend. This is represented as two node projects within a single monorepo.
The frontend project is called
web and the backend project is called
api. For clarity, we will refer to these in prose as "sides", i.e. the "web side" and the "api side".
They are separate projects because code on the
web side will end up running in the user's browser while code on the
api side will run on a server somewhere.
Important: When this guide refers to "API", that means the Supabase API and when it refers to "api side", that means the RedwoodJS
api side is an implementation of a GraphQL API. The business logic is organized into "services" that represent their own internal API and can be called both from external GraphQL requests and other internal services.
web side is built with React. Redwood's router makes it simple to map URL paths to React "Page" components (and automatically code-split your app on each route).
Pages may contain a "Layout" component to wrap content. They also contain "Cells" and regular React components.
Cells allow you to declaratively manage the lifecycle of a component that fetches and displays data.
For the sake of consistency with the other framework tutorials, we'll build this app a little differently than normal.
We won't use Prisma to connect to the Supabase Postgres database or Prisma migrations as one typically might in a Redwood app.
Instead, we'll rely on the Supabase client to do some of the work on the
web side and use the client again on the
api side to do data fetching as well.
That means you will want to refrain from running any
yarn rw prisma migrate commands and also double check your build commands on deployment to ensure Prisma won't reset your database. Prisma currently doesn't support cross-schema foreign keys, so introspecting the schema fails due
to how your Supabase
public schema references the
Before we start building we're going to set up our Database and API. This is as simple as starting a new Project in Supabase and then creating a "schema" inside the database.
Create a project#
- Create a new project in the Supabase Dashboard.
- Enter your project details.
- Wait for the new database to launch.
Set up the database schema#
Now we are going to set up the database schema. We can use the "User Management Starter" quickstart in the SQL Editor, or you can just copy/paste the SQL from below and run it yourself.
- Go to the SQL Editor page in the Dashboard.
- Click User Management Starter.
- Click Run.
You can easily pull the database schema down to your local project by running the
db pull command. Read the local development docs for detailed instructions.
_10supabase link --project-ref <project-id>_10# You can get <project-id> from your project's dashboard URL: https://supabase.com/dashboard/project/<project-id>_10supabase db pull
Get the API Keys#
Now that you've created some database tables, you are ready to insert data using the auto-generated API.
We just need to get the Project URL and
anon key from the API settings.
- Go to the API Settings page in the Dashboard.
- Find your Project
service_rolekeys on this page.
Building the App#
Let's start building the RedwoodJS app from scratch.
RedwoodJS requires Node.js
>= 14.x <= 16.x and Yarn
Make sure you have installed yarn since RedwoodJS relies on it to manage its packages in workspaces for its
Initialize a RedwoodJS app#
We can use Create Redwood App command to initialize
an app called
_10yarn create redwood-app supabase-redwoodjs_10cd supabase-redwoodjs
While the app is installing, you should see:
Then let's install the only additional dependency supabase-js by running the
setup auth command:
_10yarn redwood setup auth supabase
Overwrite existing /api/src/lib/auth.[jt]s?
Say, yes and it will setup the Supabase client in your app and also provide hooks used with Supabase authentication.
_10✔ Generating auth lib..._10✔ Successfully wrote file `./api/src/lib/auth.js`_10✔ Adding auth config to web..._10✔ Adding auth config to GraphQL API..._10✔ Adding required web packages..._10✔ Installing packages..._10✔ One more thing..._10_10You will need to add your Supabase URL (SUPABASE_URL), public API KEY,_10and JWT SECRET (SUPABASE_KEY, and SUPABASE_JWT_SECRET) to your .env file.
Next, we want to save the environment variables in a
We need the
API URL as well as the
jwt_secret keys that you copied earlier.
And finally, you will also need to save just the
web side environment variables to the
These variables will be exposed on the browser, and that's completely fine. They allow your web app to initialize the Supabase client with your public anon key since we have Row Level Security enabled on our Database.
You'll see these being used to configure your Supabase client in
App Styling (Optional)#
An optional step is to update the CSS file
web/src/index.css to make the app look nice.
You can find the full contents of this file here.
Start RedwoodJS and your first Page#
Let's test our setup at the moment by starting up the app:
_10yarn rw dev
rw is an alias for
redwood, as in
yarn rw to run Redwood CLI commands.
You should see a "Welcome to RedwoodJS" page and a message about not having any pages yet.
So, let's create a "home" page:
_10yarn rw generate page home /_10_10✔ Generating page files..._10✔ Successfully wrote file `./web/src/pages/HomePage/HomePage.stories.js`_10✔ Successfully wrote file `./web/src/pages/HomePage/HomePage.test.js`_10✔ Successfully wrote file `./web/src/pages/HomePage/HomePage.js`_10✔ Updating routes file..._10✔ Generating types ...
/ is important here as it creates a root level route.
You can stop the
dev server if you want; to see your changes, just be sure to run
yarn rw dev again.
You should see the
Home page route in
Set up a Login component#
Let's set up a Redwood component to manage logins and sign ups. We'll use Magic Links, so users can sign in with their email without using passwords.
_10yarn rw g component auth_10_10✔ Generating component files..._10✔ Successfully wrote file `./web/src/components/Auth/Auth.test.js`_10✔ Successfully wrote file `./web/src/components/Auth/Auth.stories.js`_10✔ Successfully wrote file `./web/src/components/Auth/Auth.js`
Now, update the
Auth.js component to contain:
Set up an Account component#
After a user is signed in we can allow them to edit their profile details and manage their account.
Let's create a new component for that called
_10yarn rw g component account_10_10✔ Generating component files..._10✔ Successfully wrote file `./web/src/components/Account/Account.test.js`_10✔ Successfully wrote file `./web/src/components/Account/Account.stories.js`_10✔ Successfully wrote file `./web/src/components/Account/Account.js`
And then update the file to contain:
You'll see the use of
useAuth() several times. Redwood's
useAuth hook provides convenient ways to access
logIn, logOut, currentUser, and access the
supabase authenticate client. We'll use it to get an instance
of the supabase client to interact with your API.
Update Home Page#
Now that we have all the components in place, let's update your
HomePage page to use them:
What we're doing here is showing the sign in form if you aren't logged in and your account profile if you are.
Once that's done, run this in a terminal window to launch the
_10yarn rw dev

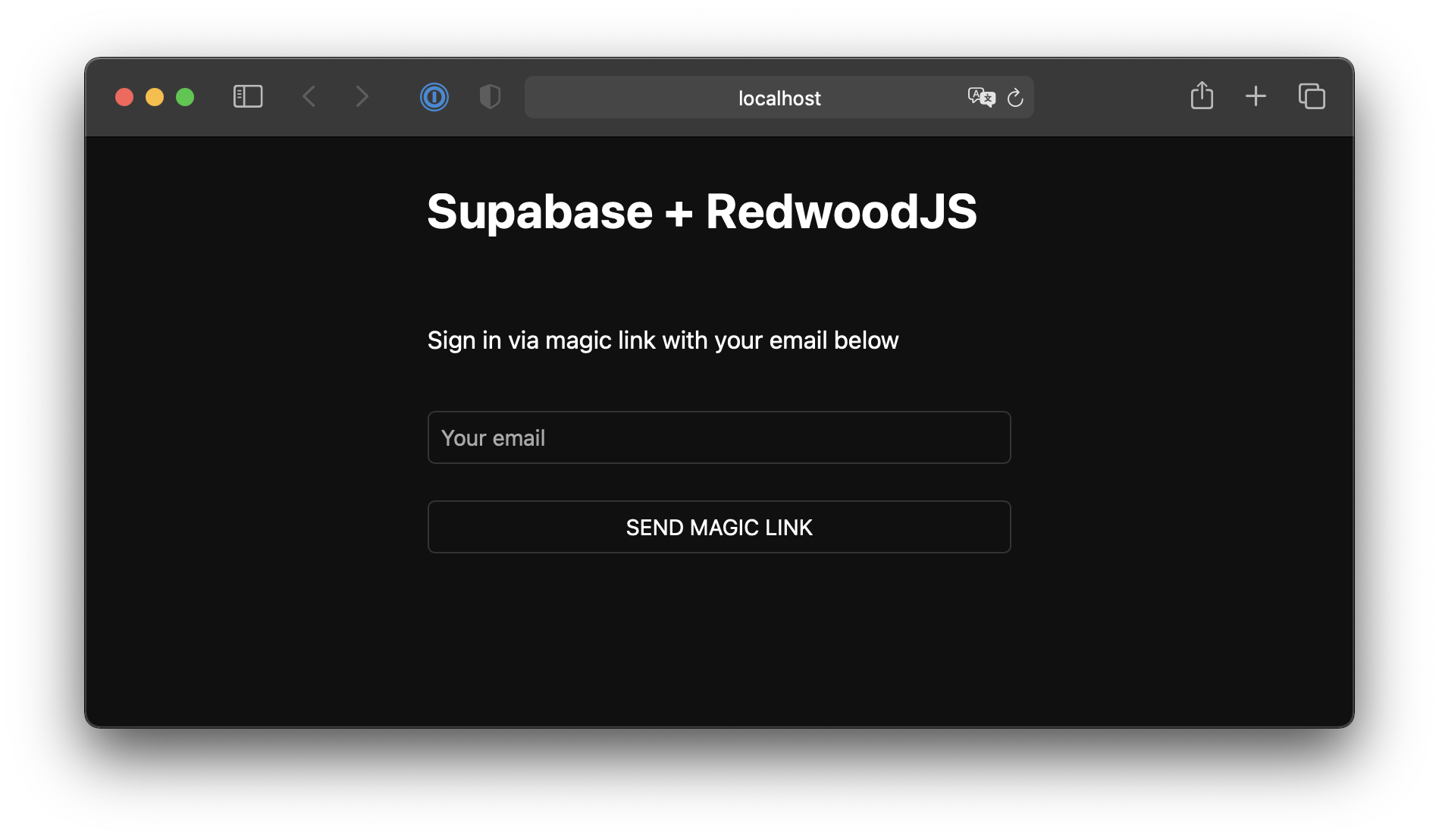

And then open the browser to localhost:8910 and you should see the completed app.
Bonus: Profile photos#
Every Supabase project is configured with Storage for managing large files like photos and videos.
Create an upload widget#
Let's create an avatar for the user so that they can upload a profile photo. We can start by creating a new component:
_10yarn rw g component avatar_10✔ Generating component files..._10✔ Successfully wrote file `./web/src/components/Avatar/Avatar.test.js`_10✔ Successfully wrote file `./web/src/components/Avatar/Avatar.stories.js`_10✔ Successfully wrote file `./web/src/components/Avatar/Avatar.js`
Now, update your Avatar component to contain the following widget:
Add the new widget#
And then we can add the widget to the Account component:
If you upload additional profile photos, they'll accumulate
avatars bucket because of their random names with only the latest being referenced
public.profiles and the older versions getting orphaned.
To automatically remove obsolete storage objects, extend the database
triggers. Note that it is not sufficient to delete the objects from the
storage.objects table because that would orphan and leak the actual storage objects in
the S3 backend. Instead, invoke the storage API within Postgres via the
Enable the http extension for the
extensions schema in the Dashboard.
Then, define the following SQL functions in the SQL Editor to delete
storage objects via the API:
_34create or replace function delete_storage_object(bucket text, object text, out status int, out content text)_34returns record_34language 'plpgsql'_34security definer_34as $$_34declare_34project_url text := '<YOURPROJECTURL>';_34service_role_key text := '<YOURSERVICEROLEKEY>'; -- full access needed_34url text := project_url||'/storage/v1/object/'||bucket||'/'||object;_34begin_34select_34into status, content_34result.status::int, result.content::text_34FROM extensions.http((_34'DELETE',_34url,_34ARRAY[extensions.http_header('authorization','Bearer '||service_role_key)],_34NULL,_34NULL)::extensions.http_request) as result;_34end;_34$$;_34_34create or replace function delete_avatar(avatar_url text, out status int, out content text)_34returns record_34language 'plpgsql'_34security definer_34as $$_34begin_34select_34into status, content_34result.status, result.content_34from public.delete_storage_object('avatars', avatar_url) as result;_34end;_34$$;
Next, add a trigger that removes any obsolete avatar whenever the profile is updated or deleted:
_32create or replace function delete_old_avatar()_32returns trigger_32language 'plpgsql'_32security definer_32as $$_32declare_32status int;_32content text;_32avatar_name text;_32begin_32if coalesce(old.avatar_url, '') <> ''_32and (tg_op = 'DELETE' or (old.avatar_url <> coalesce(new.avatar_url, ''))) then_32-- extract avatar name_32avatar_name := old.avatar_url;_32select_32into status, content_32result.status, result.content_32from public.delete_avatar(avatar_name) as result;_32if status <> 200 then_32raise warning 'Could not delete avatar: % %', status, content;_32end if;_32end if;_32if tg_op = 'DELETE' then_32return old;_32end if;_32return new;_32end;_32$$;_32_32create trigger before_profile_changes_32before update of avatar_url or delete on public.profiles_32for each row execute function public.delete_old_avatar();
Finally, delete the
public.profile row before a user is deleted.
If this step is omitted, you won't be able to delete users without
first manually deleting their avatar image.
_14create or replace function delete_old_profile()_14returns trigger_14language 'plpgsql'_14security definer_14as $$_14begin_14delete from public.profiles where id = old.id;_14return old;_14end;_14$$;_14_14create trigger before_delete_user_14before delete on auth.users_14for each row execute function public.delete_old_profile();
At this stage you have a fully functional application!
